A scaled General Arrangement Drawing of the property, presenting the overall composition of a building in a sectional view. The drawing includes the relationship and key dimensions between the main elements of a building (such as floors, walls, columns and beams). Components and assemblies (such as windows and doors) are represented within the overall design.

Suitability

• Detailed space planning
• Architectural alterations and additions

Output

• 2x standard sections are produced, unless otherwise specified
• AutoCAD 2018 .dwg file in model space, at 1:1, in millimetres/inches
• Digital PDF

Detailed inclusions

• All visible architectural features, internal and external
• Doors in the form of generic blocks
• Built-in cabinetry and sanitary-ware
• External features, when captured
• Details down to 50mm/2” shown, with a tolerance of 30mm/1”
• Dimensions rounded to the nearest 5mm / 1⁄4”
• Room names
• Floor levels in relation to each other, based on a set datum of 0m / 0ft at the lowest floor, unless OS Survey datum line provided / requested prior to capture

Exclusions

• Floor finishes and other material attributes
• Georeferenced position of property, unless georeferenced data is provided or specifically requested before capture commences
• Differentiation between structural slabs and ceilings (where slabs are obstructed by ceilings)

Definition

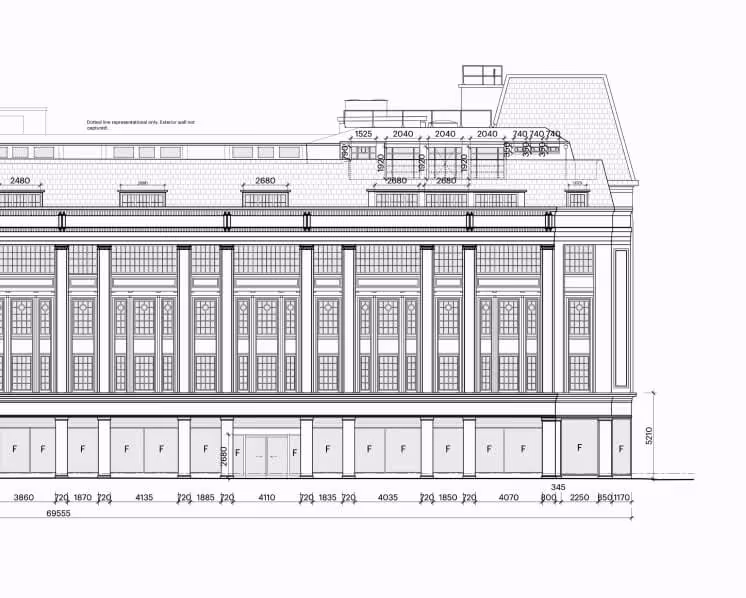

A scaled General Arrangement Drawing of the property, presenting the overall composition of a building in an elevational view. An orthographic projection of the exterior faces (façades) of a building as seen from a particular direction, with the perspective flattened in two dimensions.

Suitability

• To explore and communicate exterior design options
• As part of an application for planning permission
• As part of an application for building regulation approval

• For sales and marketing purposes


Output

• All accessible / visible elevations are delivered, unless otherwise specified
• AutoCAD 2018 .dwg file in model space, at 1:1, in millimetres/inches
• Digital PDF

Detailed inclusions

• All visible external architectural features, including decks, porches, steps and the like
• Opening sizes, such as doors and windows
• Key dimensions, such as wall lengths and heights
• Details down to 50mm/2” shown, with a tolerance of 30mm/1”. • Dimensions rounded to the nearest 5mm / 1⁄4”
• Floor levels in relation to each other, based on an arbitrary 0m point at the lowest floor, unless OS Survey datum line provided / requested prior to capture

Exclusions

• Floor finishes and other material attributes
• Georeferenced position of property, unless georeferenced data is provided or specifically requested before capture commences
• Details and features of neighbouring properties, unless specified

Definition

A scaled drawing showing a vertical projection of a wall or other surface inside a building. These drawings detail the size and placement of fixtures and fittings.

Suitability

• Detailed space planning
• Detailed interior design works
• Detailed architectural works

Output

• 4x internal elevations are produced for each requested room, unless otherwise specified
• AutoCAD 2018 .dwg file in model space, at 1:1, in millimetres/inches
• Digital PDF

Detailed inclusions

• All visible architectural features
• Details down to 50mm/2” shown, with a tolerance of 30mm/1”
• Dimensions rounded to the nearest 5mm / 1⁄4”
• Details of specific elements such as joinery units, sanitary-ware, wall finishes and materiality, and accurate location of fixtures and fittings
• Accurate positioning of built-in cabinetry and sanitary-ware
• Room names

Exclusions

• Floor levels of different rooms in relation to each other
• Elements that are not visible or accessible during time of capture

Definition

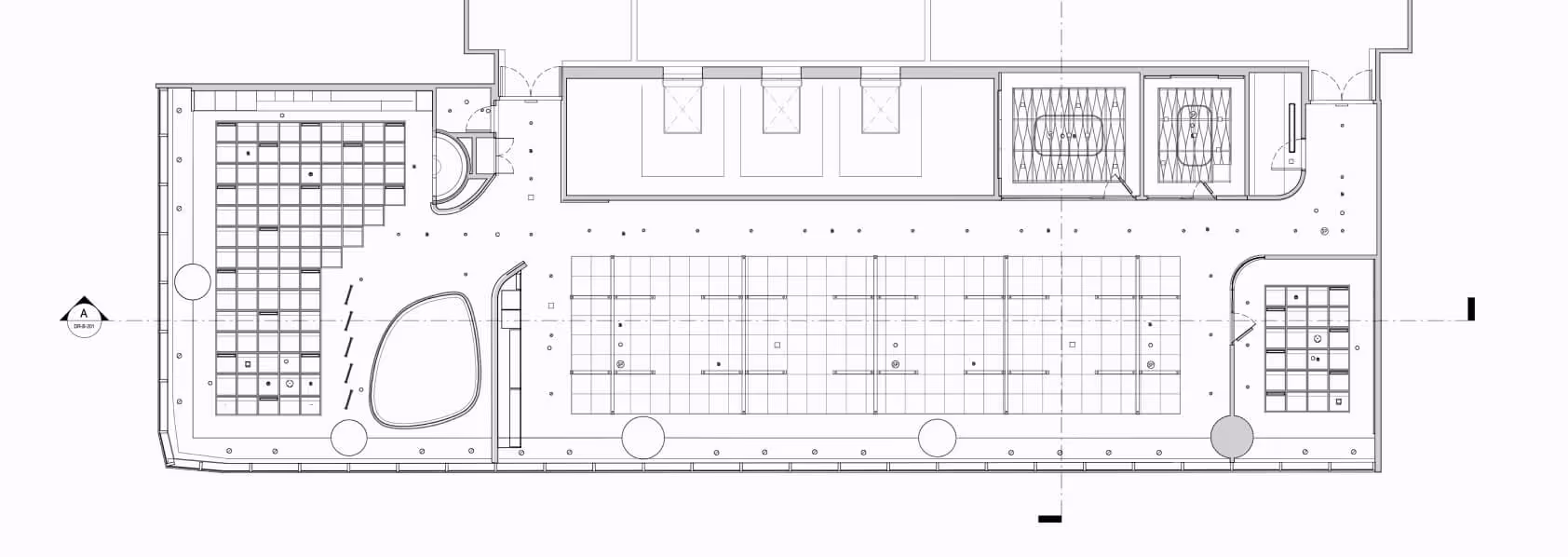

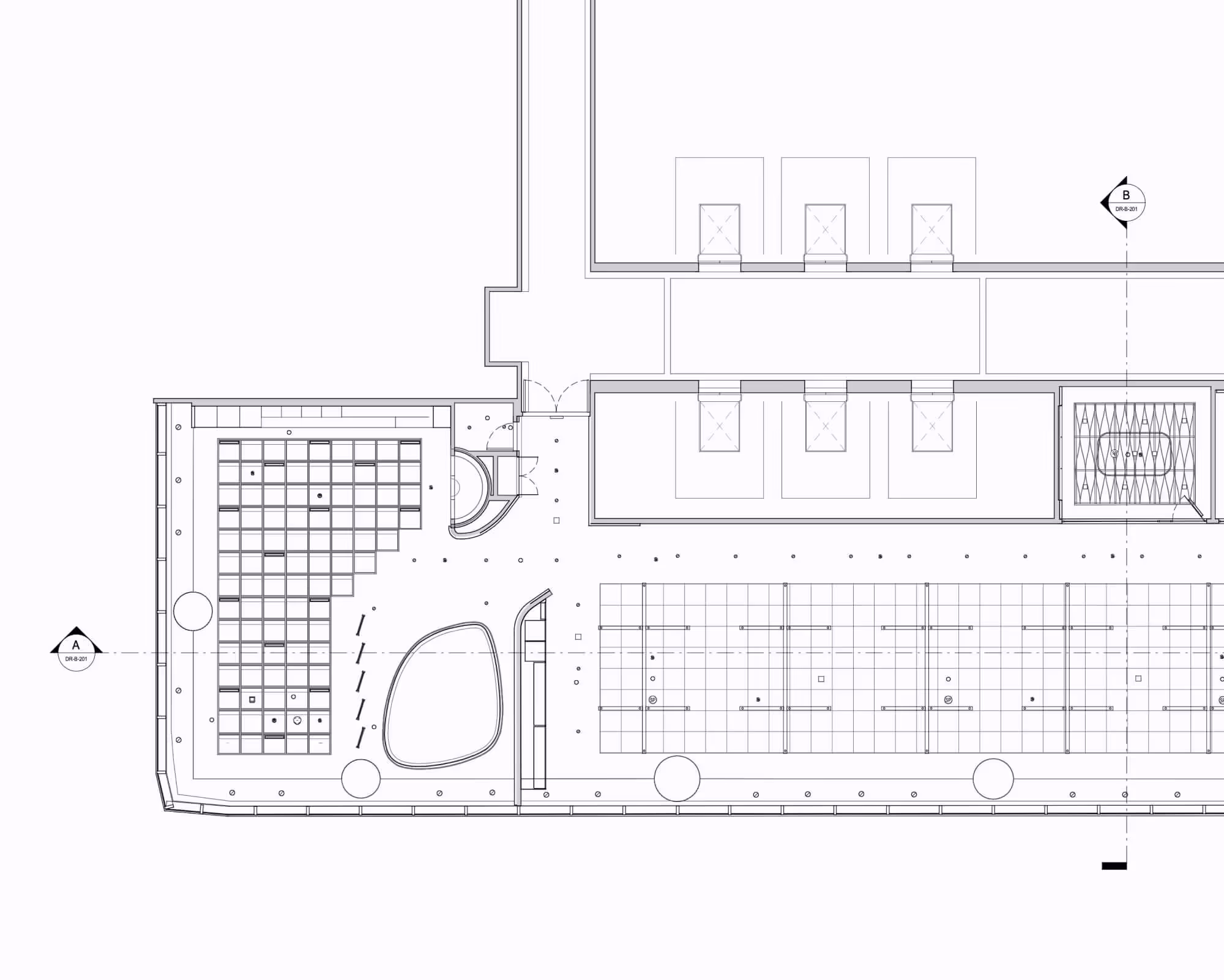

A plan of a ceiling / exposed soffit projected on a flat plane showing the arrangement of MEP fixtures such as lights, grilles and sprinklers servicing the spaces below.

Suitability

• Interior design works
• Space planning
• Planning approval

Output

• Reflected ceiling plans are produced for each captured floor
• AutoCAD 2018 .dwg file in model space, at 1:1, in millimetres/inches
• Digital PDF

Detailed inclusions

• RCP’s are based on AutoCAD Plans as a prerequisite
• Details down to 50mm/2” shown, with a tolerance of 30mm/1”
• Dimensions rounded to the nearest 5mm / 1⁄4”
• Visible overhead structural beams / walls
• Complete/detailed layout of ceilings and bulkheads, with accurate positions of all visible light fixtures on the ceiling, shown as generic blocks
• Accurate positions of all visible services. These services will remain unspecified, but located, unless clearly identifiable
• Room names
• Ceiling heights

Exclusions

• Floor levels
• Floor finishes and other material attributes
• Detailed descriptions of types of services
• Georeferenced position of property, unless georeferenced data is provided or specifically requested before capture commences
